Backend integration

Game API introduction

note

Partner - side which integrates games.

Provider - side which provides games (Aviatrix).

Current document describes methods implemented by provider. Methods allow the partner to launch the game and to retrieve the game round results.

Game API methods

good to know

All POST requests contain the X-Auth-Signature HTTP header required to authenticate the host. That allows to refuse IP whitelisting during integration process. Otherwise, it deprives the provider of the ability to scale quickly (horizontally) without notifying the platform.

tip

Ask your integration manager for the base URL.

/game/url

The method is used to generate a game launch URL with the specified parameters.

Example of the request

Attention

Request headers specified in the example are required: Accept, Content-Type, X-Auth-Signature

POST /game/url HTTP/1.1
Content-Type: application/json
Accept: application/json
X-Auth-Signature: <signature>

{
  "cid": "someplatform",
  "productId": "nft-aviatrix",
  "sessionToken": "5fc0cbd8-6328-43a5-a016-c075950d5393",
  "lang": "en",
  "lobbyUrl": "https://example.com",
  "isDemo": false,
  "promoCode": "ABCD2025",
  "hideExitButton": false
}

Parameter	Description	Type	Requirements	Explanation
cid	unique brand identifier	string	mandatory	identifier can be the same for all environments within the brand
productId	brand game identifier	string	mandatory	current identifiers: nft-aviatrix, second-chance, aviatrix-fruits
sessionToken	token with user session	string	mandatory when isDemo=false	token must be generated by the brand for further requests from server part of provider. Expected length: 1-255 symbols. Not required for demo mode
lang	language code	string	optional	format code ISO 639-1. Default value is en
lobbyUrl	lobby url	string	optional	needed for redirects to brand homepage
isDemo	demo mode flag	bool	mandatory for demo mode	needed to enable the demo mode of the game. Required parameter for demo mode
promoCode	promotional code	string	optional	needed for direct opening of the promo code entry form. If a value is passed (promoCode=promocode1&…), a modal window will open, and the input will be filled. If the parameter is empty (promoCode=&…), the entry form will open with an empty input value.
hideExitButton	controls the visibility of the menu exit button	string	optional	controls the visibility of the menu exit button, overriding its display if enabled in the config

Example of the response from the server

HTTP/1.1 200 OK
{
  "url": "https://domain.com?cid=somebrand&productId=nft-aviatrix&sessionToken=qwerty12345&lang=en&lobbyUrl=https://example.com"
}

Parameter	Description	Type	Explanation
url	game launch URL	string	complete URL for launching the game with parameters

/game/list

The method is used to display the list of games available for a brand.

Example of the request

Attention

Request headers specified in the example are required: Accept, Content-Type, X-Auth-Signature

POST /game/list HTTP/1.1
Content-Type: application/json
Accept: application/json
X-Auth-Signature: <signature>

{
  "cid": "someplatform"
}

Parameter	Description	Type	Requirements	Explanation
cid	unique brand identifier	string	mandatory	identifier can be the same for all environments within the brand

Example of the response from the server

HTTP/1.1 200 OK
{
  "games": [
    {
      "productId": "nft-aviatrix",
      "name": "Aviatrix",
      "rtp": "97.00"
    }
  ]
}

Parameter	Description	Type	Explanation
games	list of games	array	in the response present games that are available for the specified brand
productId	brand game identifier	string	current identifiers: nft-aviatrix, second-chance, aviatrix-fruits
name	brand game name	string	available languages: en
rtp	percentage return to player	string	will return to the player in the long run

/game/round

The method is used to get info about a round or a bet results. The response is application/json by default; to request an HTML page a header ACCEPT should be provided with value text/html

Example of the request for any game

Attention

Request headers specified in the example are required: Accept, Content-Type, X-Auth-Signature

POST /game/round HTTP/1.1
Content-Type: application/json
Accept: application/json
X-Auth-Signature: <signature>

{
  "cid": "someplatform",
  "playerId": "john",
  "productId": "nft-aviatrix",
  "roundId": "2028207"
}

Parameter	Description	Type	Requirements	Explanation
cid	unique brand identifier	string	mandatory	value from URL parameters of games provider during integration
playerId	user identifier	string	mandatory	value from request /playerInfo
productId	brand game identifier	string	mandatory	current identifiers: nft-aviatrix, second-chance, aviatrix-fruits
roundId	round identifier	string	mandatory if betId is missing	value from request /bet
betId	bet identifier	string	mandatory if roundId is missing	value from request /bet

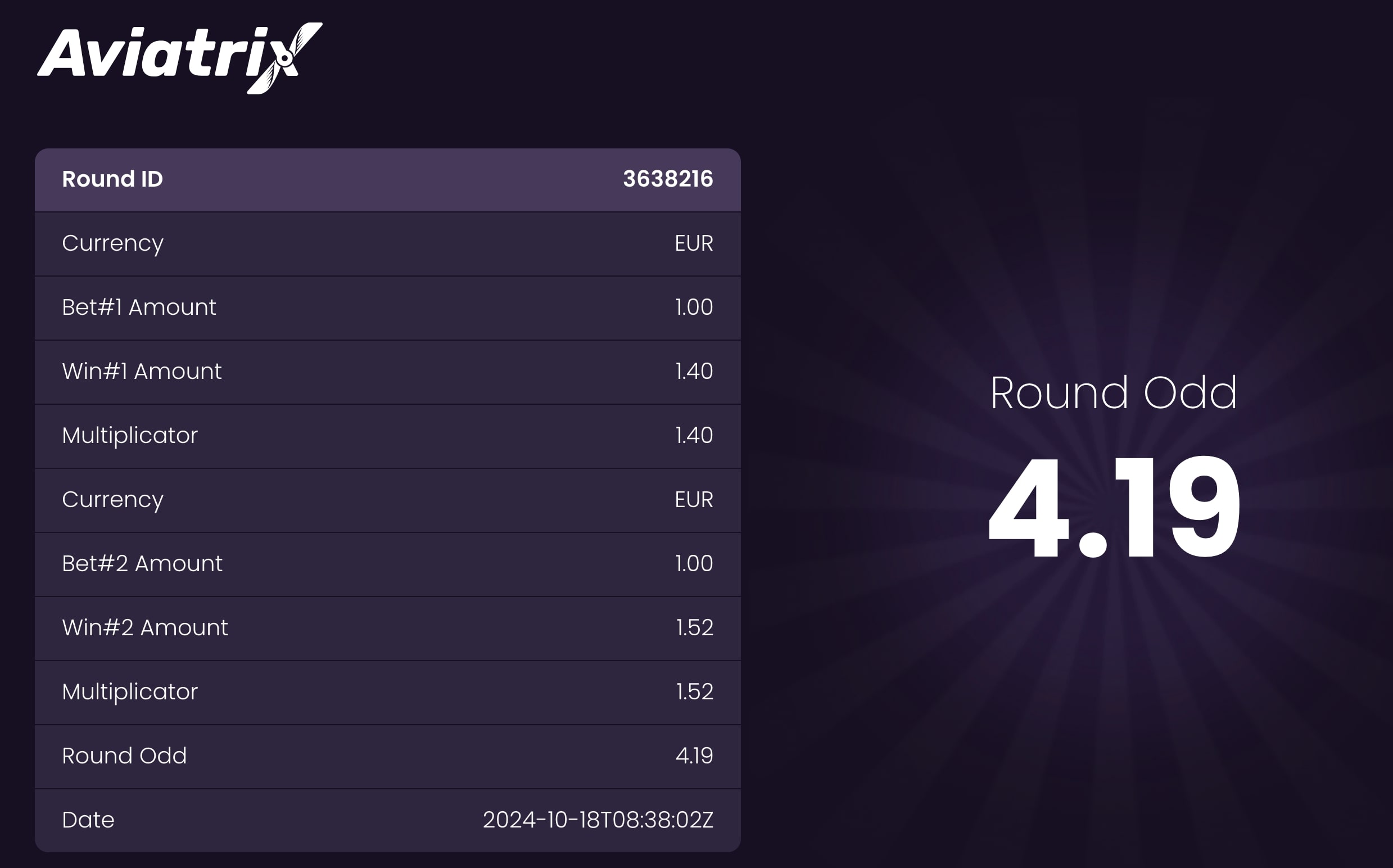

Example of a response from the server for Aviatrix

HTML

JSON

HTTP/1.1 200 OK

{
  "roundId": "3838216",
  "roundOdd": 4.19,
  "finishedAt": "2024-10-18T08:38:02Z",
  "bets": [
    {
      "id": "af5ec231-42dd-4c3d-5eaf-ebe859da69da",
      "currency": "EUR",
      "betAmount": 100,
      "winAmount": 140,
      "odds": 1.40
    },
    {
      "id": "c4d3312c-69da-475c-af5e-be8e59dadd42",
      "currency": "EUR",
      "betAmount": 100,
      "winAmount": 152,
      "odds": 1.52
    }
  ]
}

Parameter details

Parameter	Description	Type	Explanation
roundId	round identifier	string	value from request /game/round
roundOdd	round coefficient	double	the odds the round finished with
finishedAt	round timestamp	timestamp	format: yyyy-MM-dd’T’HH:mm:ss.SSSZ
bets	user's bets	array	all user's bets or requested by betId one
bet.id	bet identifier	string	id of a placed bet
bet.currency	bet currency	string	ISO-4217-3 format. currency in which the user made a bet
bet.odds	win coefficient	double	coefficient of bet settled on. odds = 0 for no winning
bet.betAmount	bet amount	integer	user bet amount in the format minor currency unit (given the cents, i.e. the number multiplied by 100)
bet.winAmount	win amount	integer	user win amount in the format minor currency unit (given the cents, i.e. the number multiplied by 100)

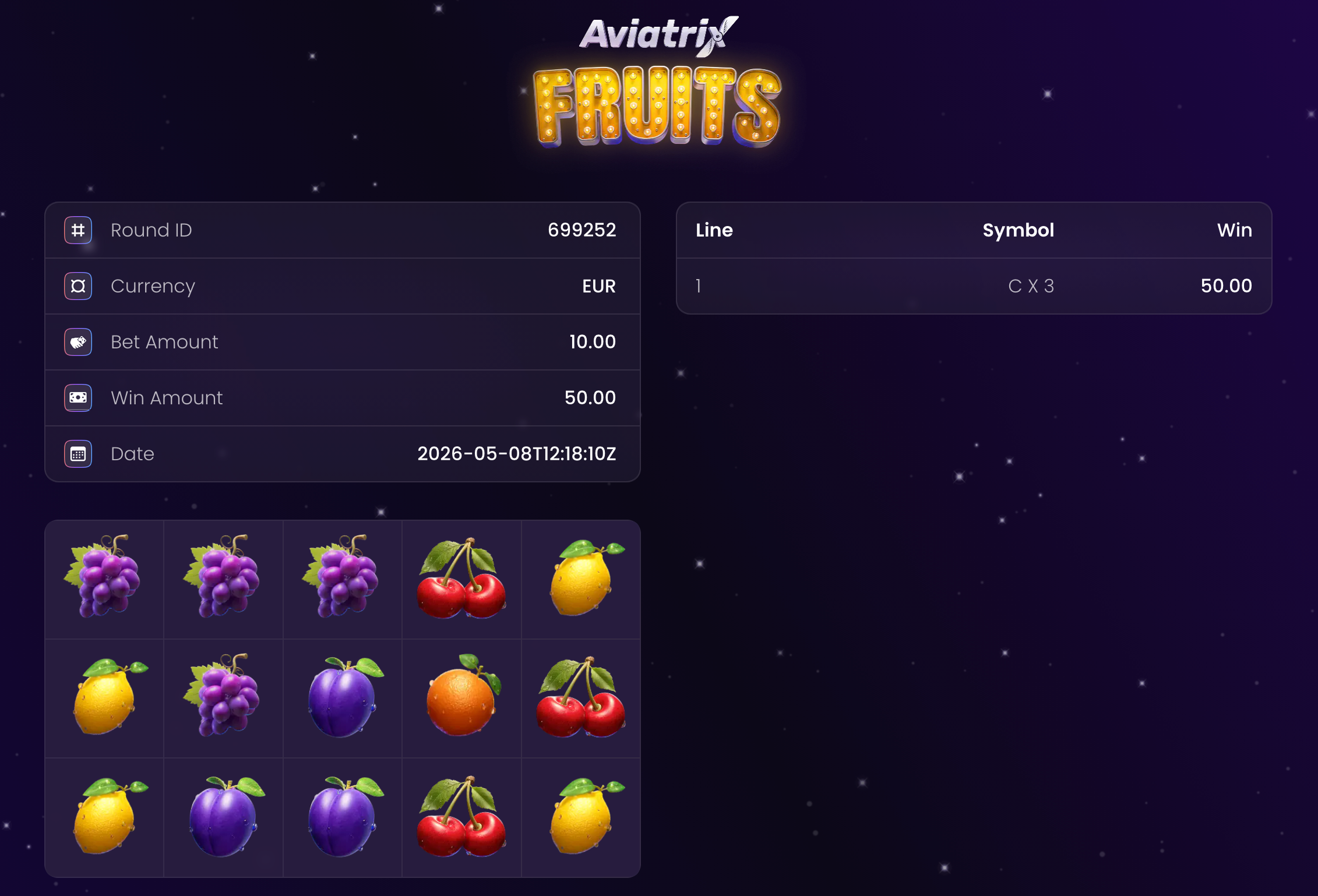

Example of a response from the server for Aviatrix Fruits

HTML

JSON

HTTP/1.1 200 OK

{
  "roundId": "699252",
  "finishedAt": "2026-05-08T12:18:10Z",
  "bets": [
    {
      "id": "8a36e6cd-882d-4595-82c2-d9ed77e15a6e",
      "currency": "EUR",
      "betAmount": 1000,
      "winAmount": 5000,
      "odds": 5
    }
  ],
  "reels": [
    [
      "c",
      "c",
      "c",
      "g",
      "f"
    ],
    [
      "f",
      "c",
      "d",
      "e",
      "g"
    ],
    [
      "f",
      "d",
      "d",
      "g",
      "f"
    ]
  ],
  "winLines": [
    {
      "line": 1,
      "symbol": "C",
      "count": 3,
      "winAmount": 5000
    }
  ]
}

Parameter details

Parameter	Description	Type	Explanation
roundId	round identifier	string	value from request /game/round
finishedAt	round timestamp	timestamp	format: yyyy-MM-dd’T’HH:mm:ss.SSSZ
bets	user's bets	array	all user's bets or requested by betId one
bet.id	bet identifier	string	id of a placed bet
bet.currency	bet currency	string	ISO-4217-3 format. currency in which the user made a bet
bet.odds	win coefficient	double	coefficient of bet settled on. odds = 0 for no winning
bet.betAmount	bet amount	integer	user bet amount in the format minor currency unit (given the cents, i.e. the number multiplied by 100)
bet.winAmount	win amount	integer	user win amount in the format minor currency unit (given the cents, i.e. the number multiplied by 100)
reels	final combination	array	size: 5 reels x 3 symbols
winLines	winning lines	array	empty array in case of lost
winLines.line	winning line number	integer	order number
winLines.symbol	winning line symbol	string	current identifiers: SC, A, B, C, D, E, F, G
winLines.count	winning line symbols counter	integer	values range: 3-5
winLines.winAmount	winning line win amount	integer	currency is specified in bet.currency parameter
